Electronic HCCD Sensor match with Web guide control system to use

HCCD01 etect printed lines, material edges or pattern
Delivery:
EXW, CIF, FOB...
minimum order:
1 piece
Country of Origin:
China
Stock Time:
2-3Day
Sunrise HCCD sensor is able to detect continuous or interrupted lines or patterns even with very low contrasts. The sensor is able to automatically select the best contrast light colour (blu, red, green or white for the models that provide it) to obtain the best contrast between the background and the line or edge and drastically reduce the calibration time.
Quantity:
Contact Now
add to cart

Electronic HCCD Sensor match with Web guide control system to use

HCCD sensor Outline

CCD01 sensor is color linear array camera which can track edge, line and pattern..etc.As the trackedmaterial is different, than we need to tell the sensor the tracking objective which need to calibrate the objective.

HCCD sensor Outline Feature

1. Track print marks on the material, edge and line.
2. Easy operation with"one-click"calibration, recognize work parameters automatically.
3. High accuracy, large detecting range, effectively avoid interference from print marks, or lost track objective.
4. Strong anti-environmental interference, no matter normal print marks or print on laser film, all can track.
5. Quick response which can work at 600m/m.

HCCD sensordata

Power voltageDC24V~45V
Output signalDigital Communication
Detecting range20mm
Detecting accuracy±0.02mm
Detecting methodCCD camera
Light sourceWhite/Red/Green/Blue
HousingAluminum alloy
Protection LevelIP54

HCCD sensor Interface

CCD sensor

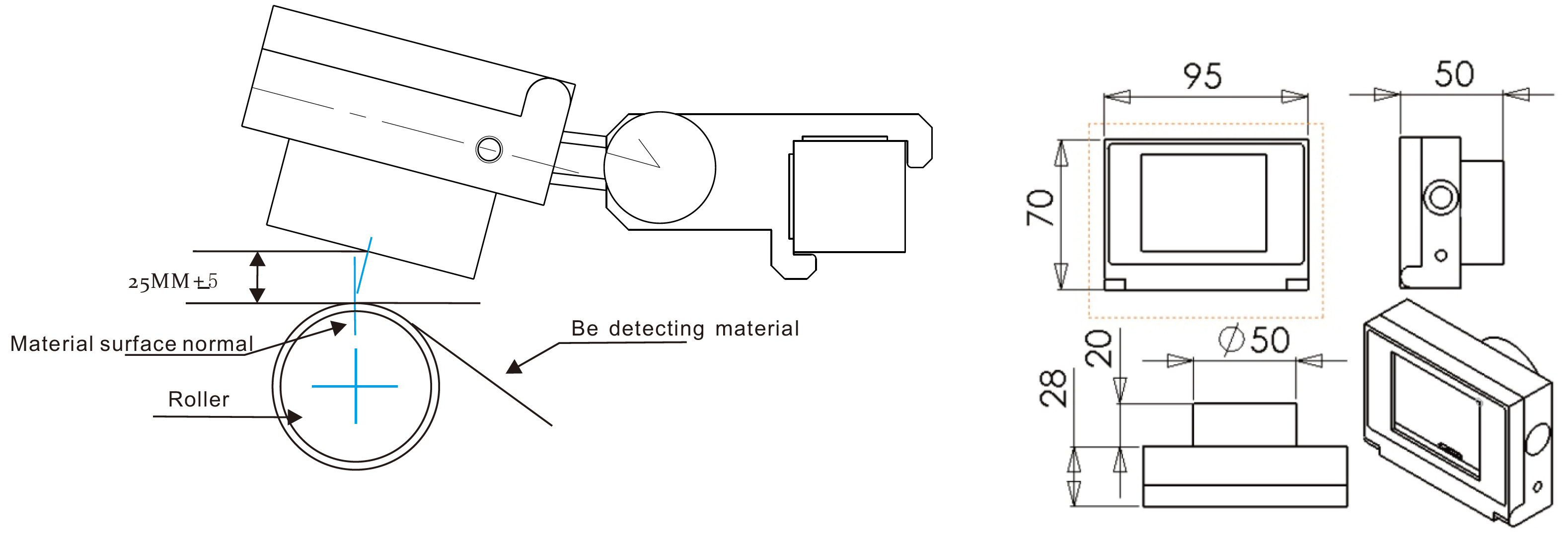

HCCD Sensor Intsallation

CCD sensor

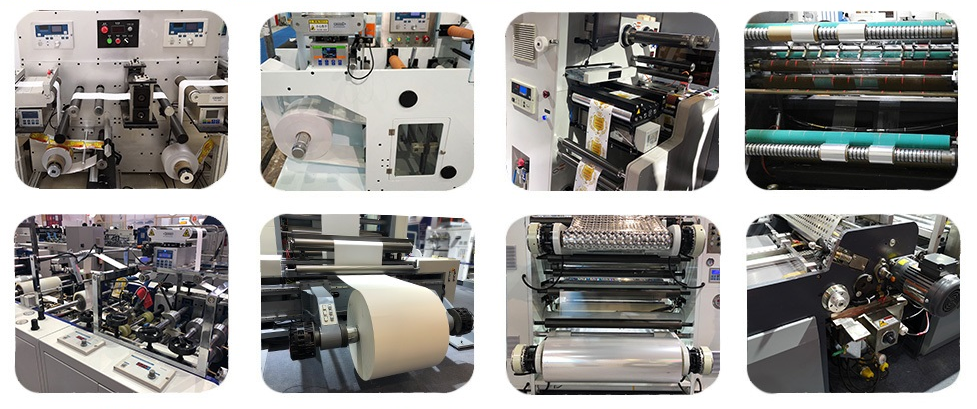

HCCD Sensor Application

CCD sensor Application

HCCD Sensor FAQ

1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.    How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3.    What’s your MOQ basis?

Normally, we don’t have MOQ request, except the rollers.

4.    What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days

5.    What is the term of delivery?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
