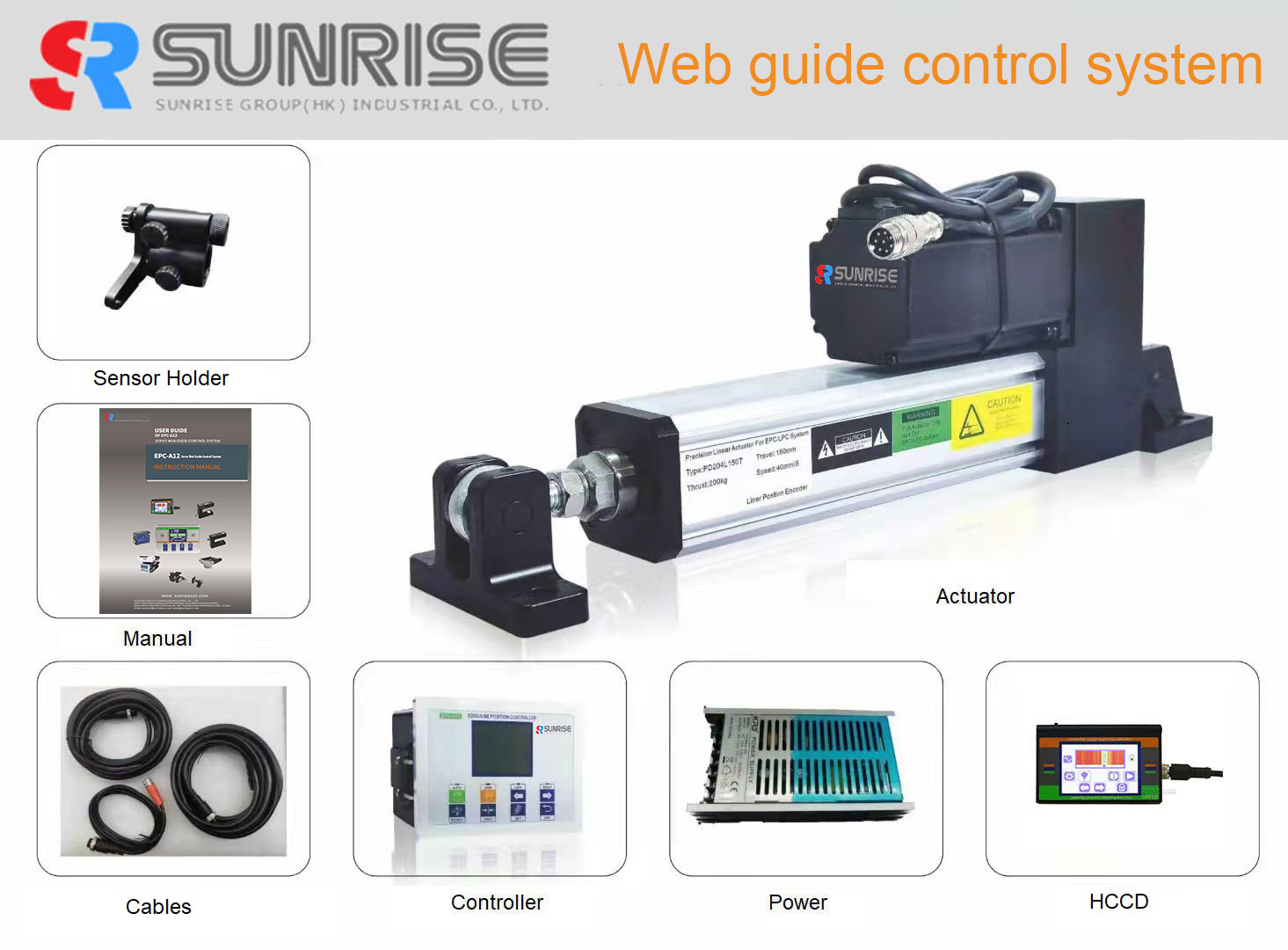

EPC Linear Type Web guide control system with HCCD sensor

EPC-A12+HCCD+PD actuator
Delivery:
EXW, CIF, FOB...
minimum order:
1 set
Country of Origin:
China
Stock Time:
2-3Day
Servo Edge Postion Controller EPC-A10/LPC-A12 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and center-alignment mode.
Quantity:
Contact Now
add to cart
EPC Linear Type Web guide control system with HCCD sensor

Linear Type Web guide controller

Servo Edge Postion Controller EPC-A10/LPC-A12 adopts the high-speed 32-bit CPU drive DC servo driver and no-overshot integral variable PI adjustable algorithm. It is of high deviation rectification and fast reaction. In addition, it supports three operation modes: the edge-following, line-following and center-alignment mode.

HCCD Sensor

HCCD sensor is color linear array camera which can track edge, line and pattern. And special designed for slitting machine, laminating machine, PC flex printing machine and various winding machines…

PD Linear Servo Motor Actuator

PD Linear actuators are generally used on unwinding and rewinding stations of compact machines to align the reel perfectly. They bring the laminate in the correct position easily and accurately to ensure that it is wound round the reel in a straight line.

Linear type Web Guiding Controller Feature

1. support three operation modes: edge-following, line-following and center-alignment.

2. support photoelectric sensor, ultrasonic transducer and CCD Sensor

3. detect sensor’s parameters intelligently, no need to correct the sensor under most circumstances

4. automatic travel measurement, no need to limit the switch mechanically.

5. no overshot integral variable PI algorithm, high accuracy, fast reaction and less error.

6. 0.5msec super-speed of responding

7. analog quantity transducer signal 12bit AD sampling, 700,000 times of sampling per second

8. adopt FIR digital filter and return difference filter, stronger anti-interference capability and more stable signal

9. DC servo motor to push the ball screw

10. power-down memory of all the parameters at any states in the system

11.store 10 groups of parameters from different material, convenient and efficient switchover of material

12. Simplified Chinese/ Traditional Chinese /English for menu operation

13. humanized operation, fast, simple and convenient

14.support Modbus and PLC/Human-computer networking control

Linear type Web Guiding Controller spec

Control Method

DC Servo Driver

Power

DC 24V /5A

Control Input

DC 0~5A

Control output

24V, PWM

Response time

0.5 mS

Environment temperature

-10~60°C, below RH90%

Weight

1.2 kg

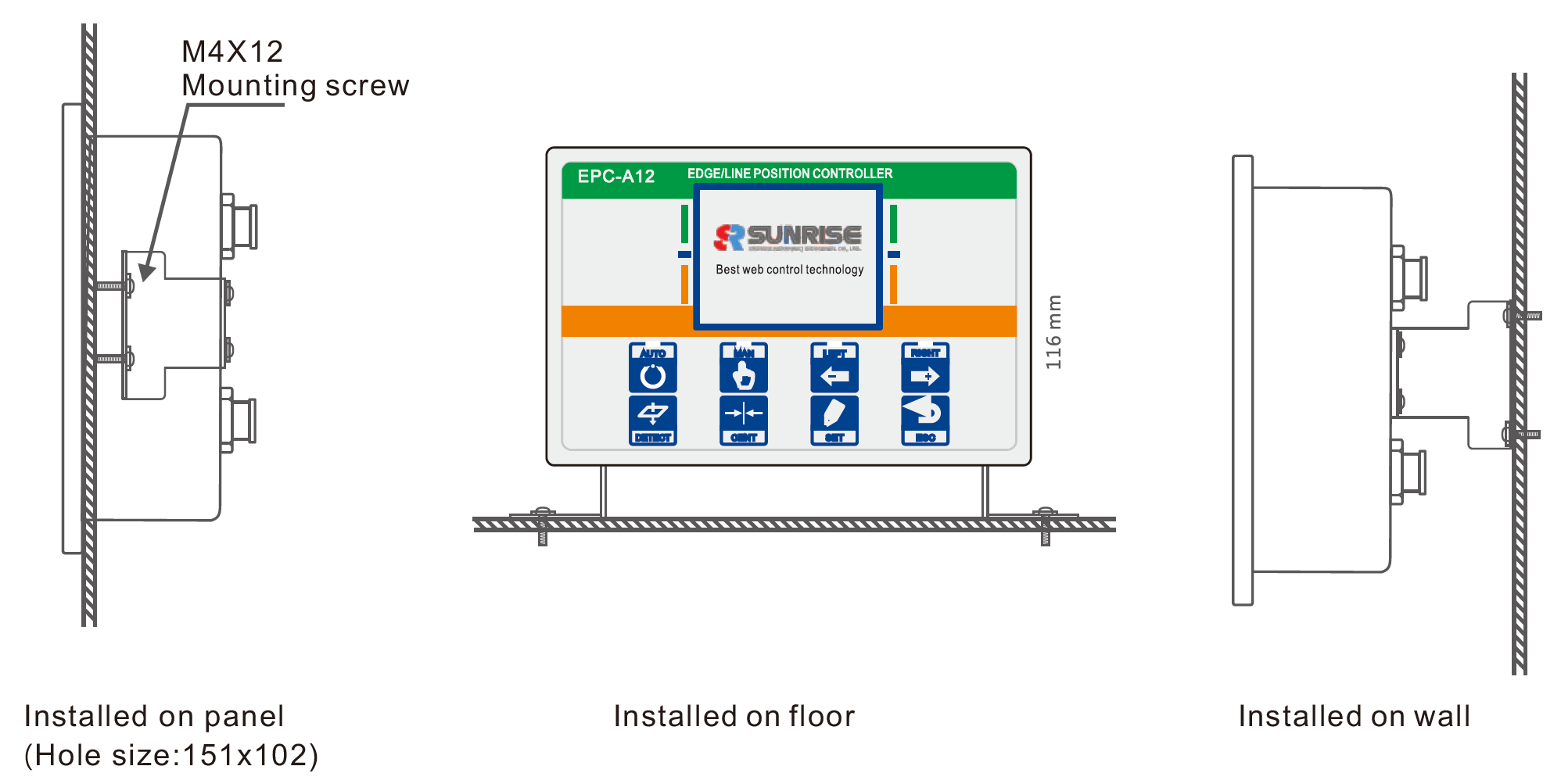

Linear type Web Guiding Controller Installation :

Linear web guiding controller

Linear type Web Guiding Controller

Linear web guide control system

Web guide control system HCCD Sensor Feature

HCCD Optical Sensor Features:
1.Track print marks on the material, edge, line and pattern.
2.Continuous or interrupted printed lines detection
3.Easy operation with"one-click"calibration, recognize working parameters automatically with optimized recognition algorithm.
4.High accuracy, large detecting range, effectively avoid interference from print marks, or lost track objective.
5.Strong anti-environmental interference, no matter print marks on cigarette pack or print on laser film, can all be well tracked.
6.Quick response speed which can work at 600m/m.

Web guide control system HCCD Sensor Spec

Power voltageDC24V~45V
Output signalDigital Communication
Detecting range20mm
Detecting accuracy±0.02mm
Detecting methodCCD camera
Light sourceWhite/Red/Green/Blue
HousingAluminum alloy
Protection LevelIP54

HCCD sensor Interface

Web guide control system HCCD SensorInterface

Web guide control system HCCD Sensor

Web guide control system HCCD Sensor Installation

HCCD sensor Installation

Web guide control system Servo Motor Actuator Parameter

ModelTravelThrustPushing loadingMax. driving speed
PD-104L8080mm100kg1000kg40mm/s
PD-204L150150mm200kg2000kg40mm/s
PD-204L200200mm200kg2000kg40mm/s
PD-403L150150mm400kg4000kg30mm/s
PD-403L200200mm400kg4000kg30mm/s
PD-803L2002000mm800kg8000kg30mm/s
Web guide control system Servo Motor Actuator

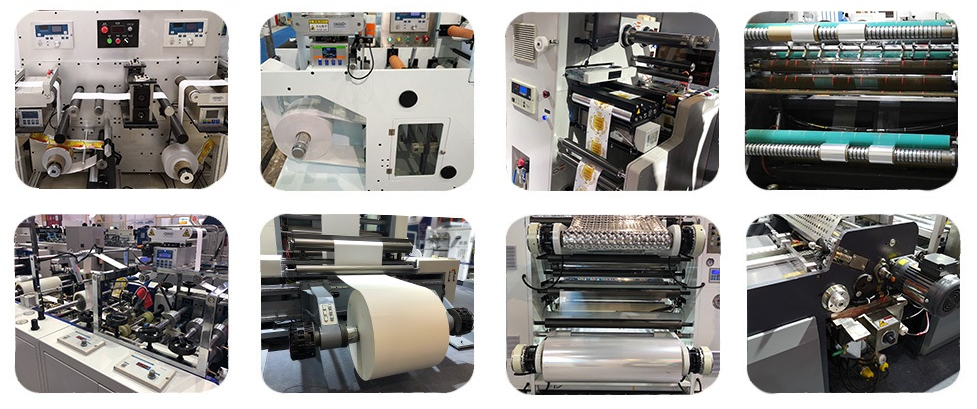

Linear type Web Guiding Control System Application

Linear type Web Guiding Control system

Linear type Web Guiding Control System FAQ

1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.    How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3.    What’s your MOQ basis?

Normally, we don’t have MOQ request, except the rollers.

4.    What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days

5.    What is the term of delivery?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
