High Performance Digital Smart Contrast Color Sensor for Colored Registration Mark Detection

Digital Smart Contrast Color Sensor Outline:

The PS-260 digital contrast sensor is characterized in terms of resolution, definition and precision of the light spot emitted by RGB LEDs, fast response time and high switching speed. The sensor, developed in a sturdy metal housing with standard mounting, is available for applications requiring innovative technology at the best price/performance ratio.

Digital Smart Contrast Color Sensor feature

1. On-off output. Match with EPC-A10 OR EPC-D12 web guide controller to use;

2. Smartly select RGB illuminant;

3. Smartly calibrating, potentiometer adjustment free;

4. Can save 10 plus parameter of material.

Digital Smart Contrast Color Sensor data:

Tracking method	Edge/ line tracking
Power input	DC 10~30V
Signal output	Analogue 0~5V/on-off signal
Detecting range	9mm
Detecting precision	0.01mm
Detecting method	Photoelectric  Reflection
Respond frequency	10K
Protection level	IP64
Weight	170kg
Environment temperature	-10~55°C
Housing	Aluminum
Material calibration	Needed

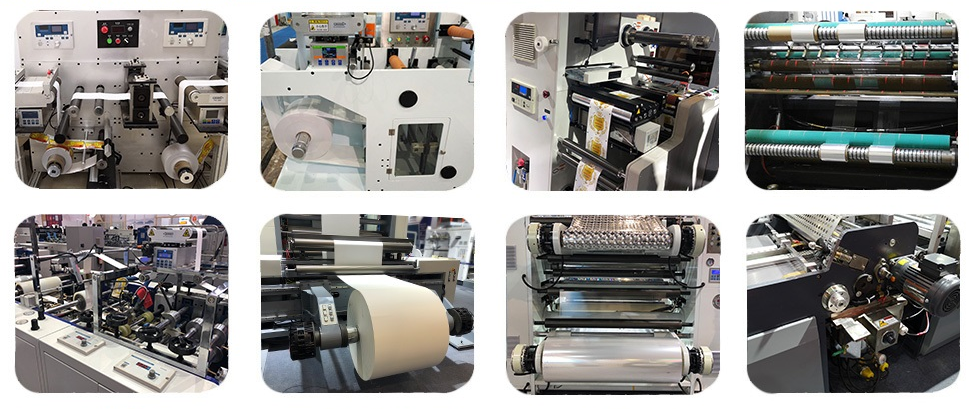

Digital Smart Contrast Color Sensor Application

Digital Smart Contrast Color Sensor FAQ

1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.    How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3.    What’s your MOQ basis?

Normally, we don’t have MOQ request, except the rollers.

4.    What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days

5.    What is the term of delivery?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
