High Quality Air Disc Brakes DBH

Supply High Quality Air disc brake DBH

Air disc brake outline:

The air disc brake is widely used in high accuracy tension control and provides the torque control from 160-960 Nm. With min air pressure 0.02Mpa and max air pressure 0.6Mpa. It is widely application in processing industries, such as packing, tissue paper and corrugated paper.

Air disc brake function:
The primary function of brakes is the conversion of mechanical energy into heat which is then dissipated into the atmosphere.
The amounts of heat which can be dissipated by air cooled disc brakes are dependent on a high rotational speed, large disc diameter, and large radiant surface. With the addition of an electric fan fitted to the centre of the housing, the best possible thermal power dissipation as achieved without high dependency on speed, and avoiding the need to increase the disc diameter in continuous slipping applications suitable for high heat dissipation.

Air disc brake advantage:

*Dimensionally smaller units, giving a more compact machine design

*Reduction in price due to smaller design

*Lower top speeds minimized the wear of the linings

*Constant controllable torque from a stable friction lining material

*Suitable for all types of applications

*Suitable for high heat dissipation

Air disc brake DBH-10 data:

Note: This drawing is for right-side type, please indicate the side when ordering
Model	DBH-103	DBH-104	DBH-105
Disc thicknesss (mm)	10	10	10
Disc Dia. (mm)	200↑	200↑	200↑
Max pressure (Mpa)	0.7	0.7	0.7
Compression ration	1.83	1.83	1.83
Pads clearance (mm)	7	7	7
Weight (kg)	8	8.5	9
Y             mm	251	263	280
ΦZ       mm	118	141	177

Air disc brake DBH-20 data:

Note: This drawing is for right-side type, please indicate the side when ordering
Model	DBH-203	DBH-204	DBH-205
Disc thicknesss (mm)	20	20	20
Disc Dia. (mm)	200↑	200↑	200↑
Max pressure (Mpa)	0.7	0.7	0.7
Compression ration	1.83	1.83	1.83
Pads clearance (mm)	7	7	7
Weight (kg)	8.5	9	9.5
Y             mm	251	263	280
ΦZ       mm	118	141	177

Air disc brake DBH-38 data:

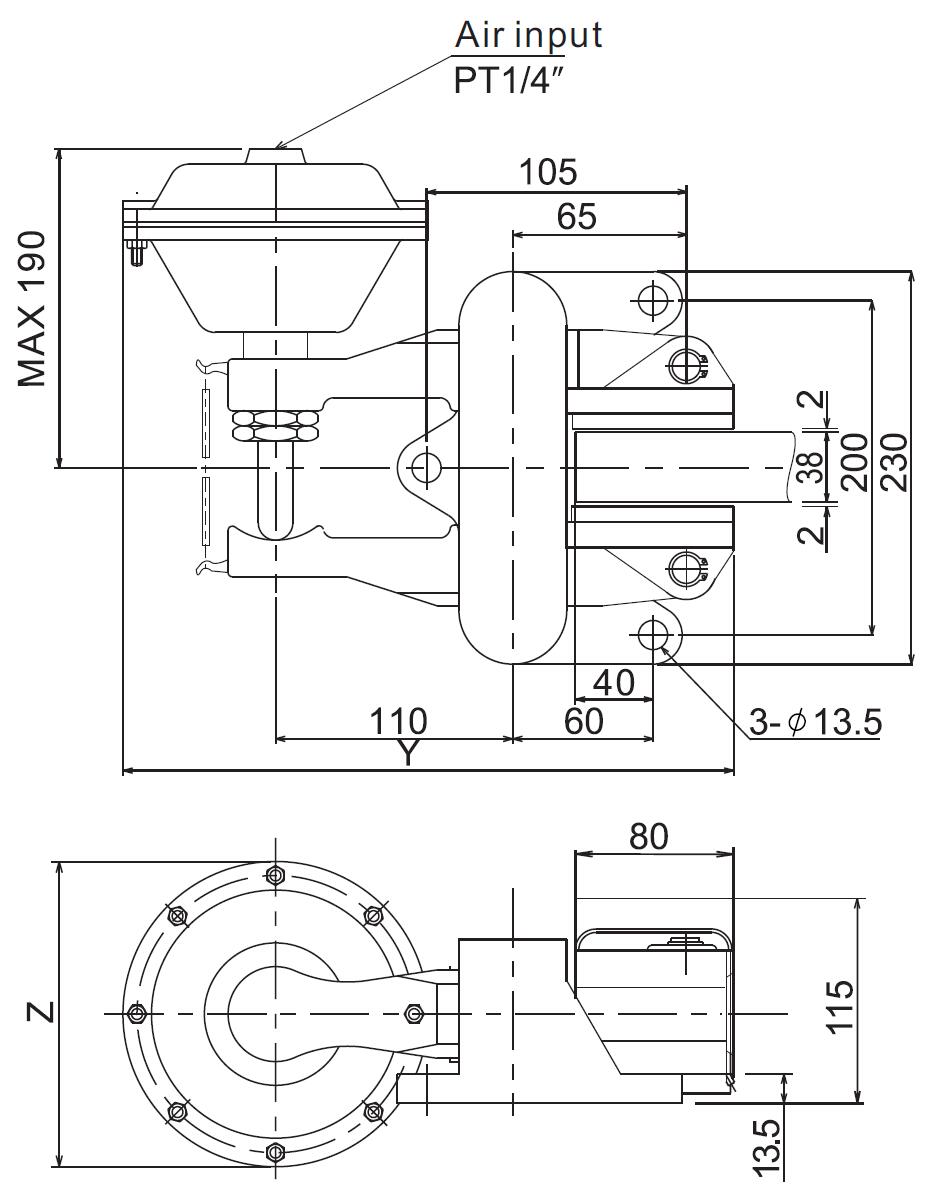

Note: This drawing is for right-side type, please indicate the side when ordering
Model	DBH-383	DBH-384	DBH-385
Disc thicknesss (mm)	38	38	38
Disc Dia. (mm)	350↑	350↑	350↑
Max pressure (Mpa)	0.7	0.7	0.7
Compression ration	1.83	1.83	1.83
Pads clearance (mm)	7	7	7
Weight (kg)	9	9.5	10
Y             mm	276	288	305
ΦZ       mm	118	141	177

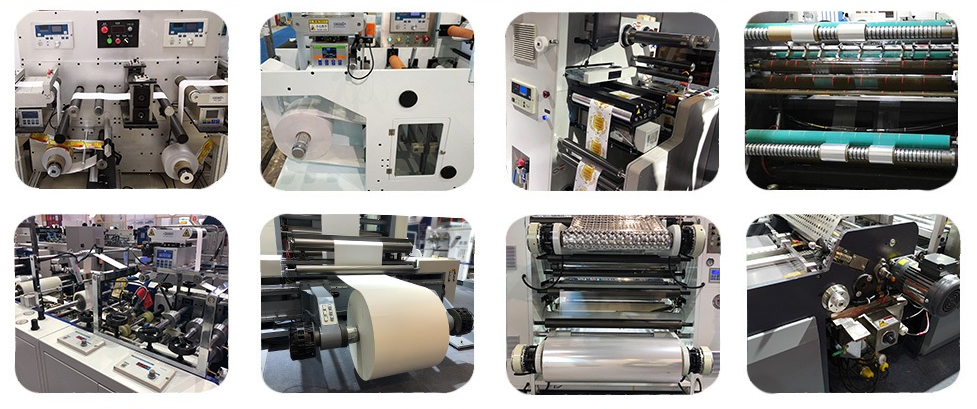

Air disc brake application
