High Quality Infrared Edge Photoelectric Sensor

PS-400S Input DC10~30V, edge guiding
Delivery:
EXW, CIF, DAP...
minimum order:
1 piece
Country of Origin:
China
Stock Time:
1-3Day
PS-400S Infrared Edge Photoelectric Sensor is specifically designed to read the edge of soundtransparent webs, materials with very thick weaves and non transparent materials.
Quantity:
Contact Now
add to cart

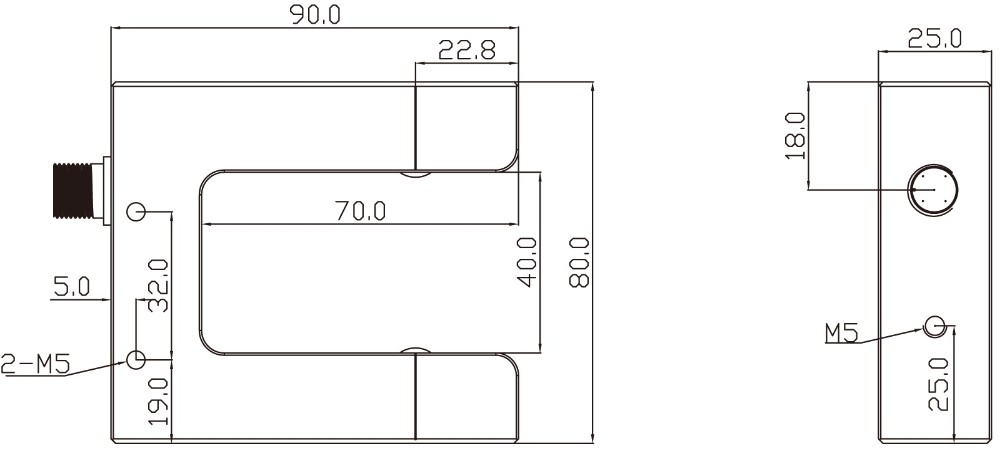

High Quality Infrared Edge Photoelectric Sensor outline

PS-400S Photoelectric sensor is a through beam web guiding sensor which based on the visible light and it’s suitable for edge-tracking application of material or line-tracking application of transparent material.

Infrared Edge Photoelectric Sensor feature

1. Support analogue /on-off output, can match with EPC-A10 or EPC-A12 web guiding controller to use;

2. Suitable for edge-tracking application of opaque, transparent and ultra-transparent film and line-tracking ultra-transparent thin film;

3. 100K carrier frequency code which is not affected by lights;

4. Detecting range: 5 mm, detecting precision: 0.02 mm;

5. High stability and accuracy.

Infrared Edge Photoelectric Sensordata

Tracking methodEdge tracking
Power inputDC 10~30V
Signal outputTwo-way 0~5V, Two-way NPN on-off signal
Detecting range8mm(±4mm)
Detecting precision± 0.02mm
Detecting methodPhotoelectric correlation
Carrier frequency/ respond frequency100KHz/1KHz
Protection levelIP54
Weight0.6kg
Environment temperature-10~80°C, below RH90%
HousingAluminum Alloy
Material calibrationNeeded

Application material for Ultrasonic sensor and Photoelectric sensor

Coil materialUltrasonic sensorPhotoelectric sensor
Transparent film√Transparency<90%
Non-transparent film√√
Paper√√
Foil√ √
Metal piece√√
Textile √
Cloth/breathable material √


Infrared Edge Photoelectric Sensor FAQ

1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.    How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3.    What’s your MOQ basis?

Normally, we don’t have MOQ request, except the rollers.

4.    What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days

5.    What is the term of delivery?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
