Monopodium Leaf Type Air Expanding Shaft

Leaf type air shaft Dia. 3" ~12", custom length
Delivery:
EXW, DAP, DDP...
minimum order:
1 piece
Country of Origin:
China
Stock Time:
5-7Day
Sunrise Leaf type air shaft Expands instantaneously for fast roll mounting.
Quantity:
Contact Now
add to cart

Monopodium Expanding Board Type Air Shaft

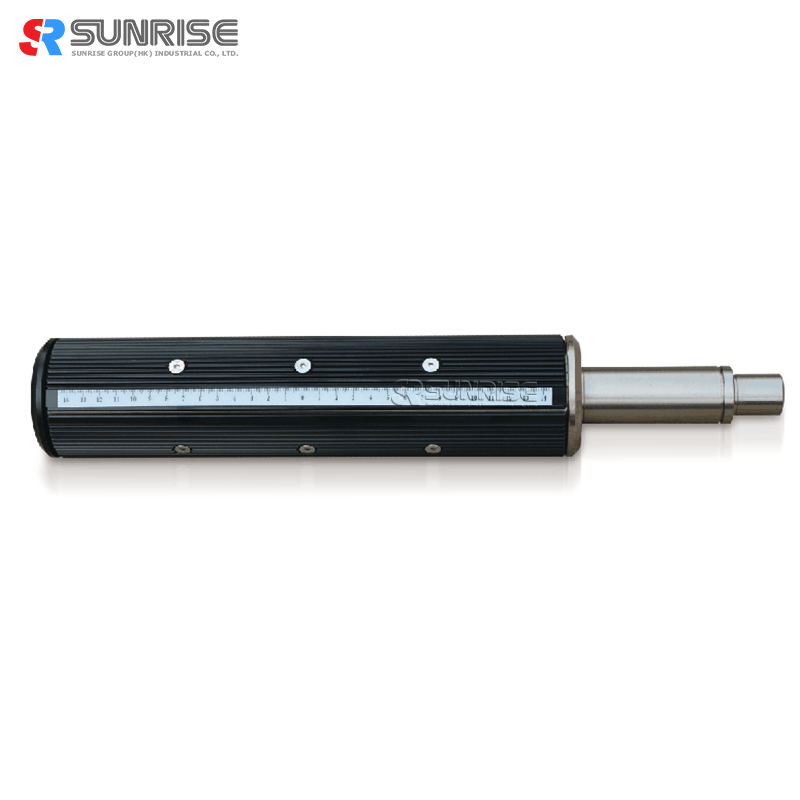

Monopodium Leaf Type Air Expanding Shaft

Air shaft is suitable for a full range of converting and web production operations, with a fixed leaf design for greatest core and web concentricity. It is ideal for core or coreless winding, and features a 360° radial expanding grip. Its rugged construction and design is available for any diameter or length, in steel, aluminum or lightweight carbon, with special designs available for heavy duty and extra lightweight applications. Shaft weights for your specific application are available upon request.

We manufacture to your specifications to suit your equipment, including cantilevered or custom designs. The SUNRISE Leaf Style air expanding shafts are guaranteed for one year against material and workmanship defects.

Monopodium Leaf Type Air Expanding Shaftfeature:

  • Expands instantaneously for fast roll mounting.
  • Grips cores securely without core or roll damage.
  • Used for unwind or rewind positions.
  • Optional web tail gripper.
  • Manual or automatic rotary union air supply.
  • Positive collapse for quick roll removal.
  • Positive drive and tension control.
  • Reliable performance.
  • Manufactured to your specifications to suit your equipment.

     Monopodium Leaf Type Air Expanding Shaft data:

    Monopodium Leaf Type Air Expanding Shaft

    ModelExternal diameter without air infalting ( Φmm)External diameter with air inflating ( Φmm)Apply to reel pipe with internal diameter as below( Φmm)
    3"Φ74~75Φ78Φ75.5~ Φ78
    4"Φ99Φ105Φ101~102
    5"Φ125Φ130Φ126~128
    6"Φ150Φ154Φ151~153
    8"Φ220Φ206Φ202~ Φ204
    10"Φ250Φ260Φ252~ Φ256
    12"Φ300Φ310Φ302~ Φ305

    Basic Structure

    Monopodium Leaf Type Air Expanding Shaft

    Working DrawingMonopodium Leaf Type Air Expanding Shaft

    Monopodium Leaf Type Air Expanding Shaftweight calculation

    L1(working width)+100 length calculation3"other size
    600-1000mm11~16(kg)For special calculating
    1000~1300mm16~20(kg)
    1300~1600mm20~24(kg)
    1600~2000mm24~30kg

      Monopodium Leaf Type Air Expanding Shaft Application



      Monopodium Leaf Type Air Expanding ShaftFAQ

      1.    When can I get the quotation?

      We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please callus or tell us in your email, so that we can regard your inquiry priority.

       2.    How should I place the order?

      Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

      3.    What’s your MOQ basis?

      Normally, we don’t have MOQ request, except the rollers.

      4.    What about the lead time for production?

      Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.

      5.    What is the term of delivery?

      We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
