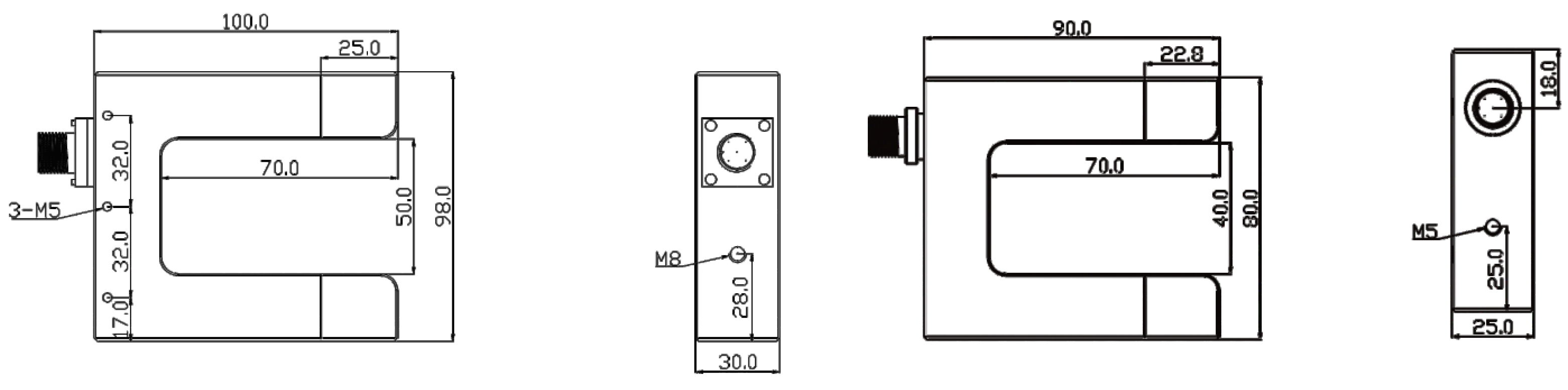

Sunrise Compact Design Ultrasonic sensor outline

US-500 & US-400S Ultrasonic sensor applies the principle of high frequency ultrasonic linear transmission to detect the edge of the material, comparing to photoelectric sensor, it will not be affected by the transparency of the materials. Thus it is very convenient and no need to adjust. It is suitable for edge application of opaque material (such as plastic film, paper etc… and transparent material, such as cloth, but not for non-woven fabrics.).

Ultrasonic sensor feature

1. Support analogue /on-off output, can match with EPC-A10 or

    EPC-D12 web guiding controller to use;

2. Suitable for edge-tracking application of opaque, transparent and ultra-transparent film and line-tracking ultra-transparent thin film;

3. No need adjustment and calibration manually;

4. 200K ultrasonic correlation;

5. 0.5 mS response time;

6. Detecting range: 6 mm,  detecting precision: 0.05 mm;

7. With own offset display.

Ultrasonic sensor data

Tracking method	Edge tracking
Power input	DC12V
Signal output	0~5V / two way switch signal
Detecting range	6mm (±3.0mm)
Detecting precision	± 0.05mm
detecting method	Ultrasonic correlation
Carrier frequency/ respond frequency	100KHz/1KHz
Housing	Zinc Die-casting
Protection level	IP54
Weight	0.6kg
