Electromagnetic Clutch and Brake set FMT

Electromagnetic clutch & brake set FMT operation principle

The clutch rotors on both sides are fixed on the output shaft, and the bearing pedestal of the clutch is placed on the output shaft. When the right clutch is powered on, the output shaft will be driven; when the right side is powered off, the clutch is separated and the output shaft stops running; when the left clutch is powered off, the output shaft is driven, and when the left side is powered off,  the clutch is disengaged, the output shaft stops.

Electromagnetic clutch & brake set Key Features (FMT)

1. With non-asbestos lining, makes the product not easy to wear out and lasts long.

2. Start, stop, high-frequency operation, positioning.

3. Super thin designed doesn't occupy much space, input side at the fly wheel and output sleeve at the transmission shaft easy for installation.

Electromagnetic clutch & brake setdata:

MODEL		FMT-006	FMT-015	FMT-025	FMT-050	FMT-100	FMT-200	FMT-400
Static Torque[kgfm](N-m)		0.6(6)	1.5(15)	2.5(25)	5.0(50)	10(100)	20(200)	40(400)
Dynamic Torque[kgfm](N-m)		0.5(5)	1.0(10)	2.0(20)	4.0(40)	8(80)	16(160)	32(320)
Power[DC24V](W)at20°C		11	15	20	25	35	45	60
Overhang weight(kg)		14	25	45	70	100	180	260
weight(kg)		1.5	2.7	5.5	9.6	18.5	35	64
Maximum speed (r/min)		1800 r/min
Radius	A2	75	90	110	135	160	200	240
	B2	95	105	130	160	185	230	270
	G	10	10	12	15	15	18	20
	J1	65.5	78.5	98	121	149	187	238
	J2	40.5	40.5	62	74	90	117	154
	K	111.5	133	162	193	232	290	350
	L	181	217	266	327	397	492	603
	M	46.5	56.5	72	92	113	142	183
	Q1	25	30	40	50	60	80	110
	Q2	20	25	30	40	50	60	70
	V1	M4*0.7P*8L		M6*1P*11L			M10*1.5P*17L
	Z2	6.5	6.5	9	11	11	14	14
Shaft	A1	52.5	65	80	105	135	155	195
	B1	80	90	110	140	175	200	240
	C	55	65	80	90	112	132	160
	D	80	100	125	150	190	230	290
	E	27.5	27.5	32	35	42	45	47
	F	57	60	68	81	97	110	129
	N	33	37	49	56	65	79	101.5
	S1	11	14	19	24	28	38	42
	S2	38	45	55	64	75	90	115
	U1	12.5	16	21	27	31	41.5	45.5
	U2	39.5	47	57	67	78	93.5	118.5
	V2	M4*0.7P*6L		M4*0.7P*8L		M6*1P*12L
	W	4	5		7		10	12
	X1	3-120°		4-90°				8-45°
	X2	60°		45°				22.5°
	Z1	13.5	13.5	15	20	24	28	28

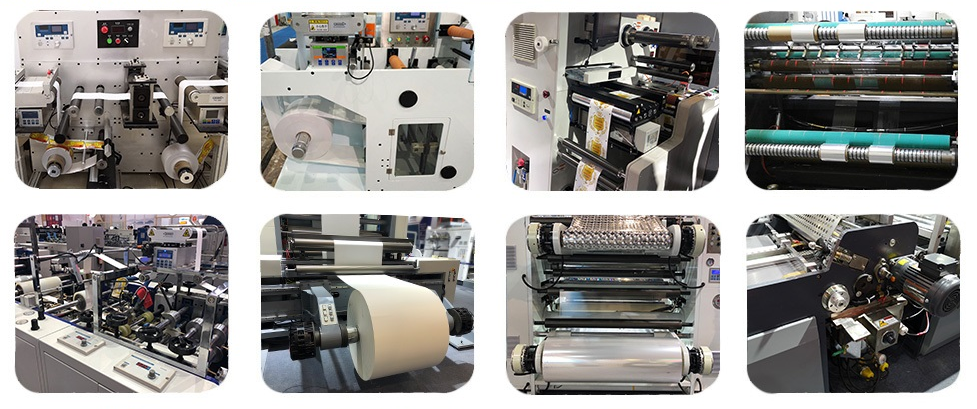

*Textile machinery: fiber twisters, treatment machines, weaving machines
* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines
