Electromagnetic clutch & brake assembly-FMR

FMR Series rated voltage 24VDC, optional 12VDC, 36VDC

Delivery:

EXW, CIF, FOB...

minimum order:

1 set

Country of Origin:

China

Stock Time:

1-3Day

Still frustrated about your powder brake, powder clutch, air shaft or safety chucks, tension controllers? And looking for available and enduring ones with warranty? You've come to the right place! --Sunrise Group!

Quantity:

Contact Now

add to cart

Electromagnetic Clutch and Brake set FMR

Electromagnetic clutch & brake set FMR operation principle

The clutch rotor and brake are fixed coaxially to form an output shaft, and the input shaft is a bearing pedestal. When the clutch is powered on, the output shaft is driven; when the clutch is powered off, the output shaft separates from the bearing pedestal. At this time, the brake is powered on, and the output shaft stops rotating.

Electromagnetic clutch & brake set Key Features

1. With non-asbestos lining, makes the product not easy to wear out and lasts long.

2. Start, stop, high-frequency operation, positioning.

3. Super thin designed doesn't occupy much space, input side at the fly wheel and output sleeve at the transmission shaft easy for installation.

Electromagnetic clutch & brake set data:


Model		FMR-006	FMR-015	FMR-025	FMR-050	FMR-100	FMR-200	FMR-400
Static Torque [kgf-m](N-m)		0.6(6)	1.5(15)	2.5(25)	5.0(50)	10(100)	20(200)	40(400)
Dynamic Torque [kgf-m](N-m)		0.5(5)	1.0(10)	2.0(20)	4.0(40)	8.0(80)	16(160)	32(320)
Power [DC 24V] (W) at 20°C		11	15	20	25	35	45	60
Overhang weight (kg)	A	30	45	70	90	140	200	290
Overhang weight (kg)	B	14	25	45	70	100	180	260
Wight (kg)		1.5	2.7	5.5	9.6	18.5	35	64
Maximum speed (r/min)	1800 r/min

Radius	A2	75	90	110	135	160	200	240
	B2	95	105	130	160	185	230	270
	G	10	10	12	15	15	18	20
	J1	65.5	78.5	98	121	149	187	238
	J2	40.5	40.5	62	74	90	117	154
	K	105.5	126.5	154	184	221	276	334
	L	181	217	270	330	399	504	632
	M	46.5	56.5	72	92	113	142	183
	Q1	25	30	40	50	60	80	110
	Q2	20	25	30	40	50	60	70
	V1	M40.7P8L		M61P11L			M101.5P17L
	Z2	6.5	6.5	9	11	11	14	14
Shaft	A1	52.5	65	80	105	135	155	195
	B1	80	90	110	140	175	200	240
	C	55	65	80	90	112	132	160
	D	80	100	125	150	190	230	290
	E	27.5	27.5	32	35	42	45	47
	F	57	60	68	81	97	110	129
	N	33	37	49	56	65	79	101.5
	S1	11	14	19	24	28	38	42
	S2	38	45	55	64	75	90	115
	U1	12.5	16	21	27	31	41.5	45.5
	U2	39.5	47	57	67	78	93.5	118.5
	V2	M40.7P6L		M40.7P6L		M40.7P6L
	W	4	5	7			10	12
	X1	3-120°	4-90°					8-45°
	X2	60°	45°					22.5°
	Z1	13.5	13.5	15	20	24	28	28

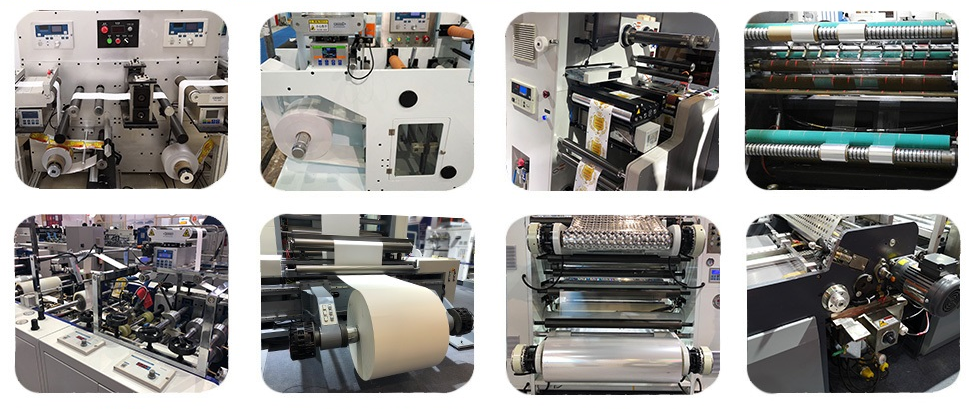

Electromagnetic clutch & brake set application

*Textile machinery: fiber twisters, treatment machines, weaving machines
* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

Electromagnetic clutch & brake set FAQ

1. When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3. What’s your MOQ basis?

Normally, we don’t have MOQ request, except the rollers.

4. What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.

5. What is the term of delivery?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
