Hollow Shaft CE Qualifed PBO Industrial Magnetic Powder Brake

Attention for usingPBOmagnetic powder brake

1. Install it with correct mounting method (make high-speed rotation side as the input side) to use the magnetic powder clutch. If the mechanical structure of output and input shafts have to be installation reversely, make sure to use the under 1000R/MIN. If the output shaft and input shaft be installed reversely, which will make the machine idle for a long time,  the magnetic powder clutch will greatly shorten the life by mixing magnetic powder.
2. Note the moisture. If the magnetic is damp, then performance will become unstable, so be careful do not to let the oil or water get into the housing. Especially when installed in the gear box, oil penetrated the internal branch of the housing through the shaft, so please seal it with film completely.
3. Note the surface temperature. Caused by continuous operation, the maximum temperature of the surface is below 90 degree when running more, than the value and durability will be greatly reduced. Make sure to limit the temperature will not above90 degree, make sure to keep the use of sliding within allowed work range.

PBO Magnetic powder brake data

Model		PBO-006	PBO-015	PBO-025	PBO-050	PBO-100	PBO-200	PBO-400
Rated torque [kgf](N-m)[		0.6(6)	1.2(12)	2.5(25	5(50)	10(100)	20(200)	40(400)
Capacity DC24V ( 75°C)	Current (A)	0.5	0.6	0.8	1.0	1.2	1.8	2.5
	Power (W)	7.2	9.4	17.5	22.6	28.8	45.6	70
	No. of hour set (S)	0.10	0.10	0.12	0.13	0.25	0.37	0.4
Weight		2.7	5.2	9	14.5	37	53	106
Maximum speed r/min		1500
Weight of powder (g)		14	25	39	60	117	255	370

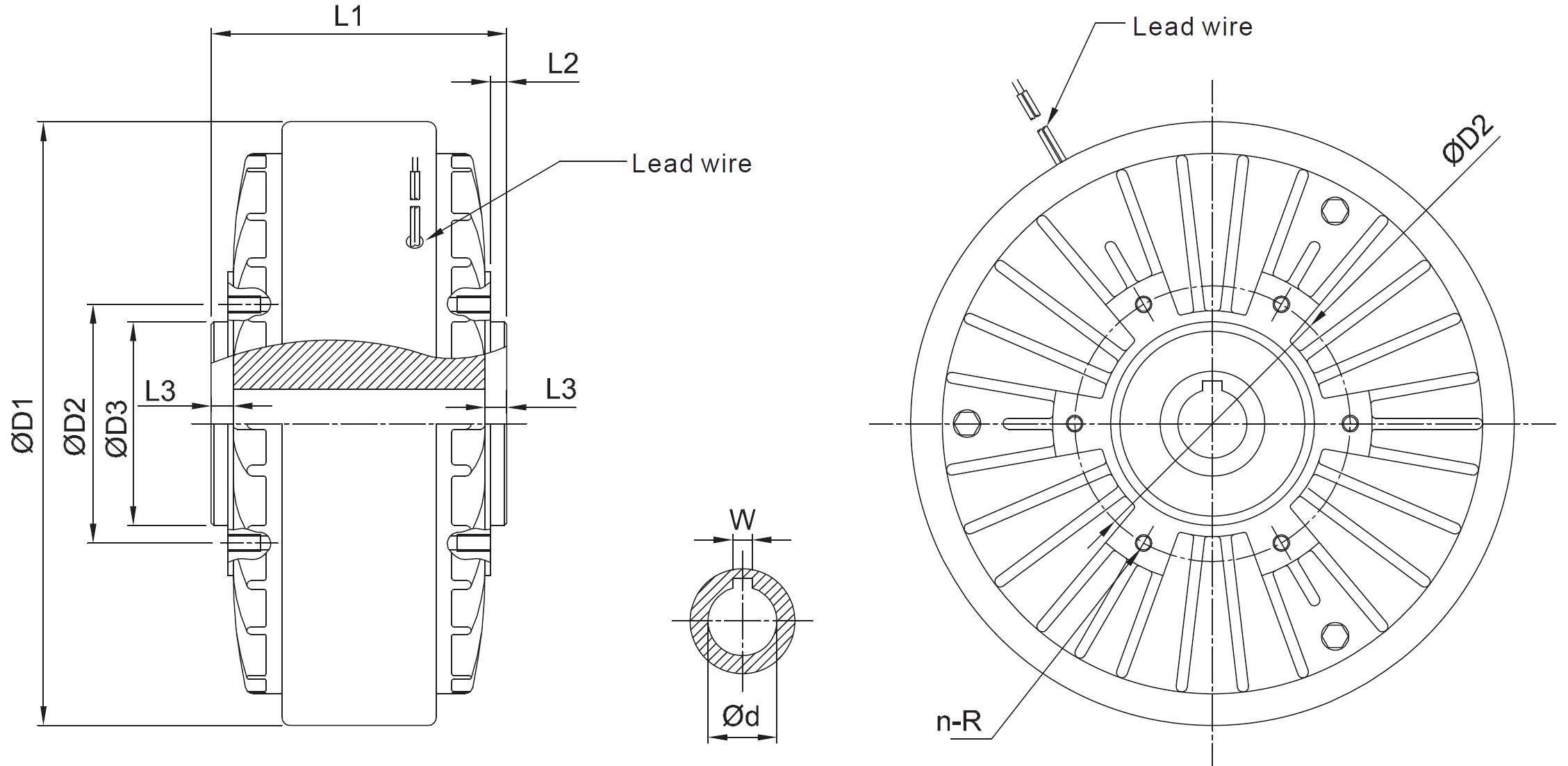

Exterior Dimension	L1	60	70	78	96	110	132	156
	L2	3	3	4	5	5	3	5
	L3	4	4	7	4	9	11	13
	D1	130	150	182	219	260	298	370
	D2	62	82	110	130	140	180	200
	D3(g7)	52	65	90	110	120	150	160
	d(H7)	16	20	25	30	35	45	50
	w(F7)	5	6	8	8	10	14	14
	n-R*depth	6-M4*8L	6-M6*9L	6-M6*9L	6-M8*10L	6-M10*12L	6-M10*12L	6-M12*19L

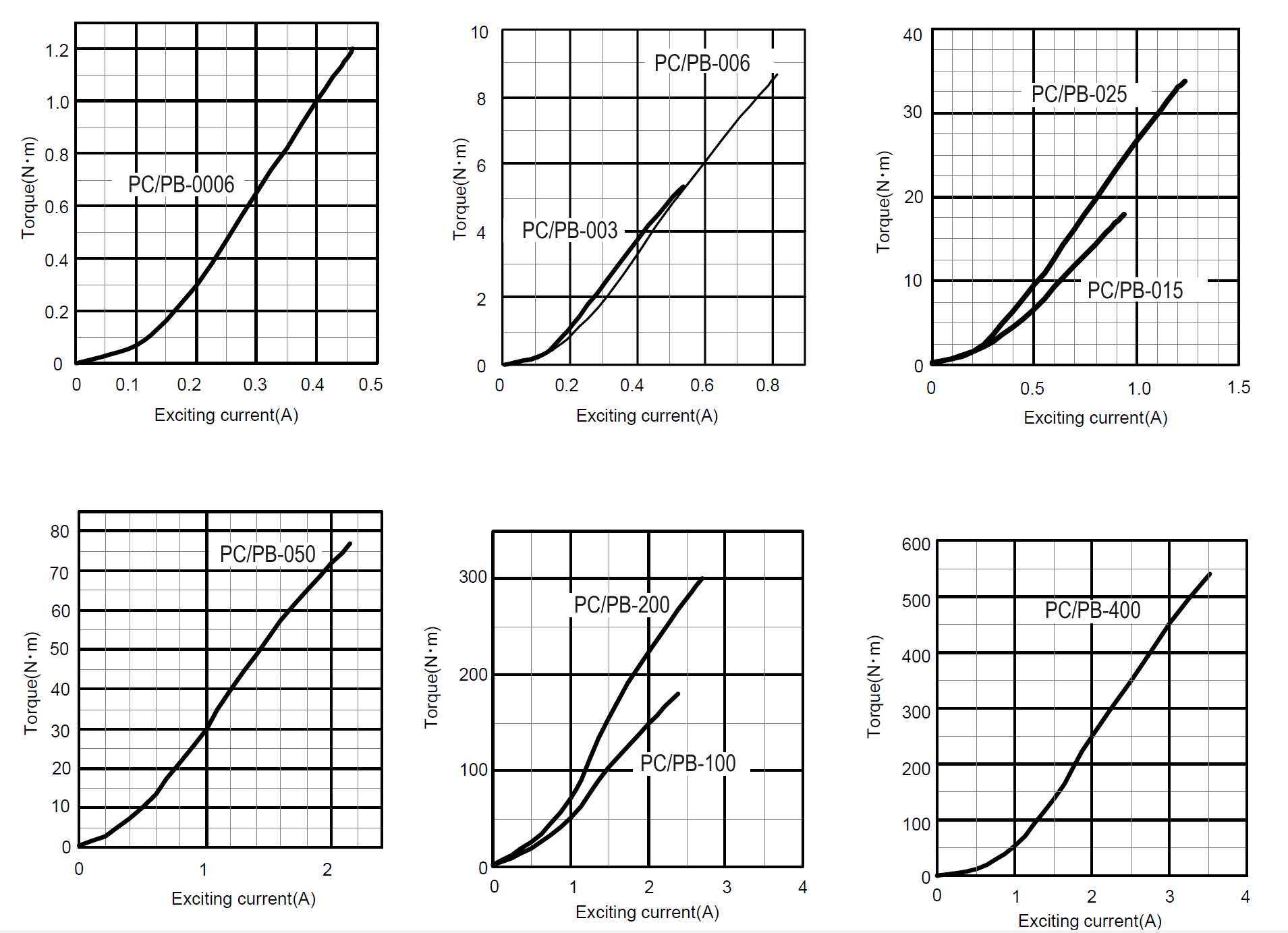

Magnetic powder brake Current VS Torque
