Lug type | key type Pneumatic air shaft

Lug type | key type Pneumatic air shaft

What is an Air Shaft?

Sunrise air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound. An Air Shaft is designed so that, on fitting into a core, it can be readily expanded, thereby achieving a quick and firm attachment, it may also be easily deflated to facility easy withdrawal of the shaft after winding of product is complete. Their efficient design makes them ideal for mounting onto bearing housings to enable the winding or unwinding of rolls of stock material with the minimum of equipment down time. The advantage of using an Air Shaft is its ability to grip the core, without damage, whilst providing a positive interface to control the web via motors & brakes. Air Shafts are available as either Key/Lug Type (with bladder down the center) or Board/Leaf Type (bladders on the periphery of the shaft)

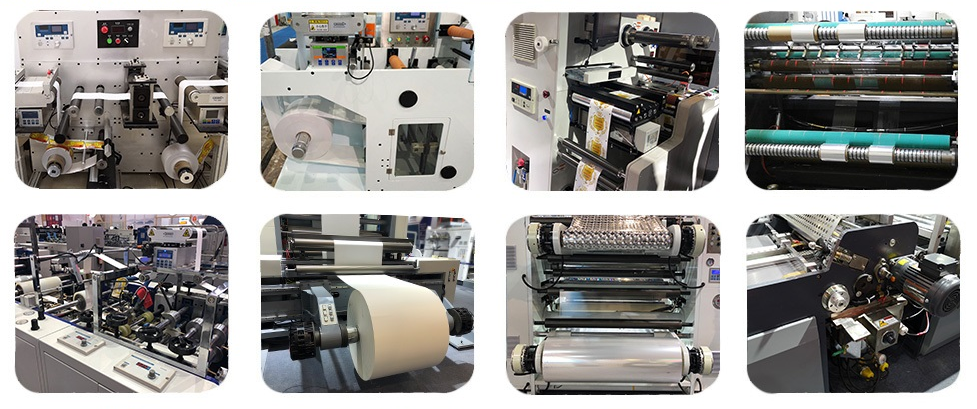

Lug type | Key type air shaft

• Expands instantaneously for fast roll mounting.
• Grips cores securely without core or roll damage.
• Used for unwind or rewind positions.
• Manual or automatic rotary union air supply.
• Positive collapse for quick roll removal.
• Reliable performance.
• Manufactured to your specifications to suit your equipment.
• Ideal for plastic, aluminum or steel cores.
• Urethane surface lugs are available to enhance gripping.

Model	External diameter without air inflating (Φ mm)	External diameter with air inflating (Φ)mm	Apply to reel pipe with internal diameter as below(Φ)mm
2"	Φ49	Φ52~ Φ54	Φ50~51
3"	Φ74~ Φ75	Φ80~ Φ82	Φ75.5~ Φ78
4"	Φ99~100	Φ104~ Φ106	Φ~101~102
5"	Φ125	Φ130~133	Φ126~ Φ128
6"	Φ150	Φ154~156	Φ151~ Φ153
8"	Φ200	Φ206~264	Φ202~204
10"	Φ250	Φ260~ Φ264	Φ252~256
12"	Φ300	Φ308~310	Φ302~305

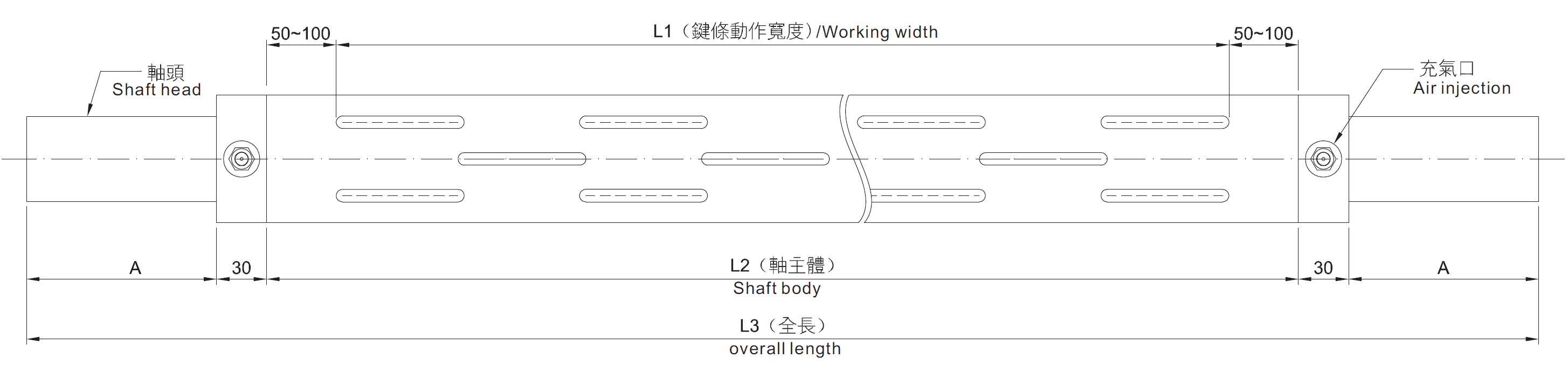

Lug type |Key Type Air Shaft Structure: Lug type | Key Type Air Shaft  Keys allocation drawing:

Lug type | Key type air shaft bearing capacity:
