Electromagnetic clutch-FCD

FCD rated voltage DC24V, Torque 6Nm ~400Nm

Delivery:

EXW, CIF, FOB...

minimum order:

1 piece

Country of Origin:

China

Stock Time:

1-3Day

Electromagnetic clutches operate electrically, but transmit torque mechanically. This is why they used to be referred to as electro-mechanical clutches.

Quantity:

Contact Now

add to cart

Electromagnetic clutch FCD

Electromagnetic clutch operation principle:

Electromagnetic clutches operate electrically, but transmit torque mechanically. This is why they used to be referred to as electro-mechanical clutches. Over the years, Sunrise became known as electromagnetic versus electro mechanical, referring more about their actuation method versus physical operation. Since the clutches started becoming popular over 60 years ago, the variety of applications and clutch designs has increased dramatically, but the basic operation remains the same.

Single-face clutches make up approximately 90% of all electromagnetic clutch sales. This article mainly deals with these types of clutches. Alternative clutch designs are mentioned at the end of this article.

Electromagnetic clutchdata:


MODEL		FCD-006		FCD-015		FCD-025		FCD-050		FCD-100		FCD-200		FCD-400
Static Torque[kgfm](N-m)		0.6(0.6)		1.5(15)		2.5(25)		5.0(50)		10(100)		20(200)		40(400)
Dynamic Torque[kgfm](N-m)		0.5(5)		1.0(10)		2.0(20)		4.0(40)		8(80)		16(160)		32(320)
Power[DC24V](W)at20°C		11		15		20		25		35		45		60
weight(kg)		0.46		0.83		1.5		2.76		5.1		9.3		17
Maximum speed(r/min)		1800

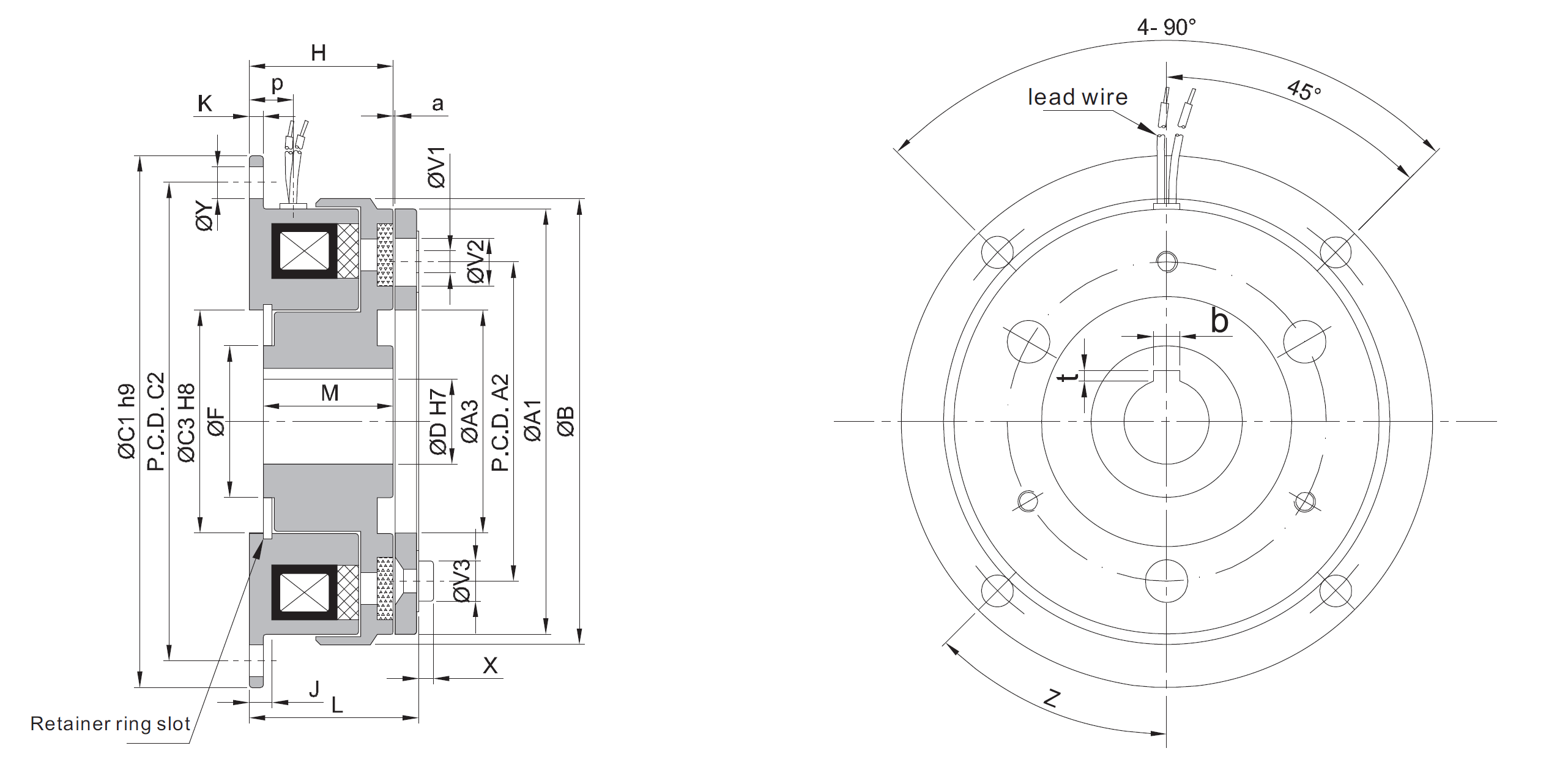

Radius	A1	63		80		100		125		160		200		250
	A2	46		60		76		95		120		158		210
	A3	34.5		41.5		51.5		61.5		79.5		99.5		124.5
	B	67.5		85		106		133		175		215		270
	C1	80		100		125		150		190		230		290
	C2	72		90		112		137		175		215		270
	C3	35		42		52		62		80		100		125
	D	12	15	15	20	20	25	25	30	30	40	40	50	50	60
	F	23		28.5		40		45		62		77		100
	V1	3-3.1		3-4.1		3-5.1		3-6.1		3-8.1		3-10.2		3-12.2
	V2	3-6.3		3-8		3-10.5		3-12		3-15		3-18		4-22
	Y	3-6		3-7		3-9		3-10.5		3-14		3-17		4-19
	Z	5		6		7		7		9.5		9.5		11.5
Shaft	Y	6-60°												8-45°
	H	24		26.5		30		33.5		37.5		44		51
	J	3.5		4.3		5		5.5		6		7		8
	K	2		2.5		3		3.5		4		5		6
	L	28		31		36		40.5		46.5		55.5		64
	M	22		24		27		30		34		40		47
	P	7.5		8		9		9		11.5		13		15.5
	X	1.5		1.8		2.1		2.8		3.4		4.5		5.1
	a	0.2(±0.05)						0.3(+0.05/-0.1)				0.5(-0/-0.2)
	b	4	5	5	5	5	7	7	7	7	10	10	12	12	15
	t	1.8	2.3	2.3	2.3	2.3	3.3	3.3	3.3	3.3	3.8	3.8	3.8	3.8	5

Electromagnetic clutch Application

*Textile machinery: fiber twisters, treatment machines, weaving machines
* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

Electromagnetic clutch FAQ

1. When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2. How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3. What’s your MOQ basis?

Normally, we don’t have MOQ request, except the rollers.

4. What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.

5. What is the term of delivery?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
