Magnetic Powder Clutch-PCO

PCO Rated torque 3~6Nm
Delivery:
EXW, CIF, DAP..
minimum order:
1 piece
Country of Origin:
China
Stock Time:
1-3Day
Your trusted partner of magnetic powder clutch, powder clutch, magnetic particle clutch, industrial clutch- Sunrise Group your best choice.
Quantity:
Contact Now
add to cart
Magnetic powder clutch and powder clutch key feature

1.    Using antifriction, anti-erode super alloy magnetic powder as material.

2.    Clutch and brake powder and slide rate is high which can slide neatly and is not arose shake.

3.    The coil is covered by red H grade heat resistance material which is not easy to burn by lighter.

4.    Our bearing is imported from Japan which can bear up 180 degrees.

The products are widely used in winding and unwinding starting/braking control, stamping startup, overload protection, position control, speed control, tension control, artificial load and relevant fast control systems.

Magnetic Powder clutch Specification
Magnetic powder clutch

Model

PCO-006

PCO-015

PCO-025

PCO-050

PCO-100

PCO-200

PCO-400

Rated torque [kgf](N-m)[

0.6(6)

1.2(12)

2.5(25

5(50)

10(100)

20(200)

40(400)

Capacity

DC24V

( 75°C)

Current (A)

0.9

1.0

2.0

2.3

2.5

2.5

3.0

Power (W)

17.8

21.6

26.4

33.6

48

60

82

No. of hour set (S)

0.10

0.10

0.12

0.13

0.25

0.37

0.4

Weight

 2.7

5.2

9

14.5

37

53

106

 Maximum speed r/min

1500

 Weight of powder (g)

 14

25

39

60

117

255

370

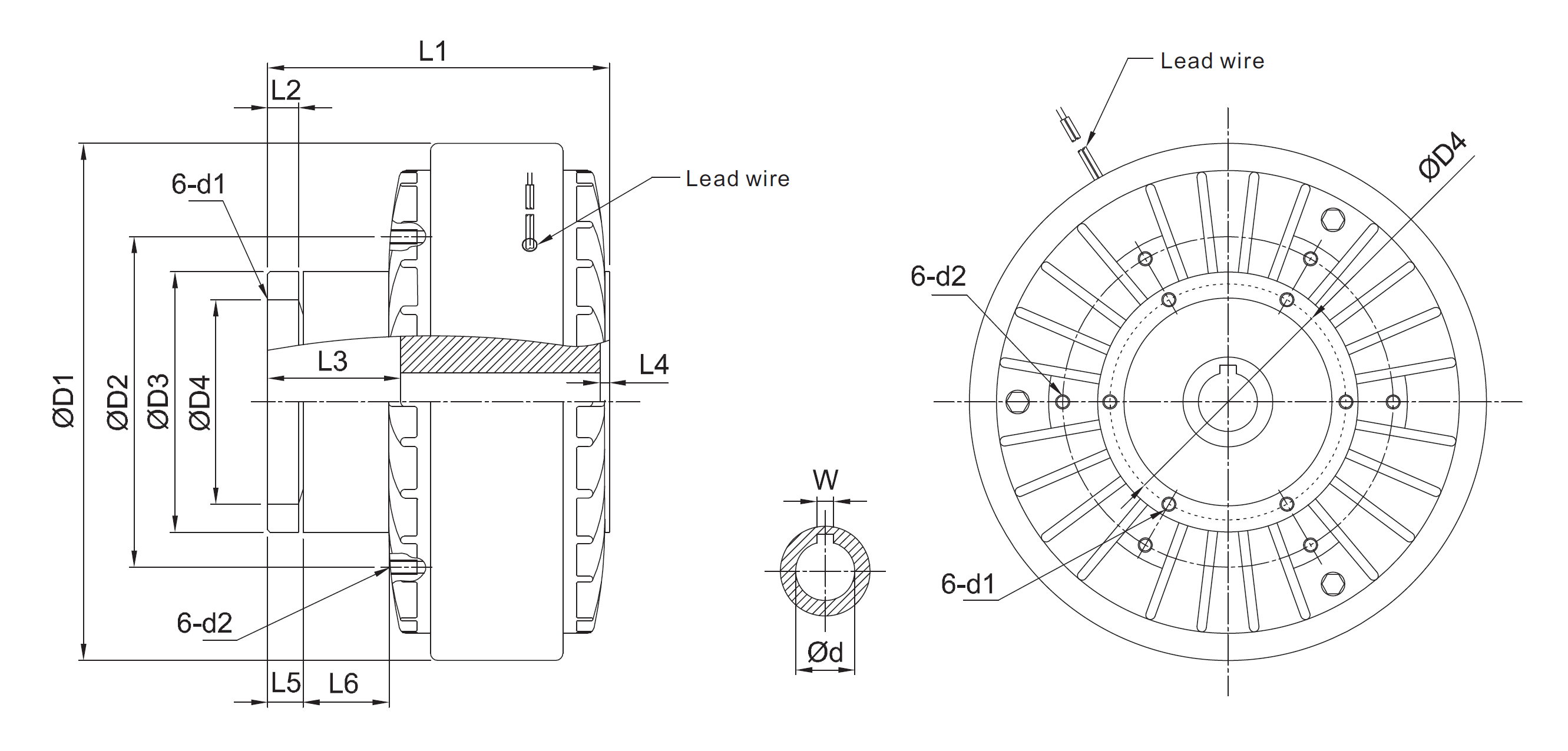

Exterior

Dimension

L1

110

126

122

155

177

197

239

L2

8

9

10

12

14

15

18

L3

44

49

51

64

77

83

91

L4

3

3

4

4

8

9

7

L5

13

14

15

17

20

21

25

L6

24

29

26

36

45

42

42

D1

140

152

186

220

290

336

398

D2

100

105

115

140

180

190

210

D3(g7)

85

90

100

120

150

170

180

D4

75

80

85

105

130

150

160

d(H7)

16

20

25

30

35

45

50

W(F7)

5

6

8

8

10

14

14

d1* depth

M5*8L

M6*9L

M6*10L

M6*12L

M10*14L

M10*15L

M12*18L

d2*depth

M5*10L

M6*12L

M6*12L

M6*14L

M10*15L

M10*16L

M12*19L

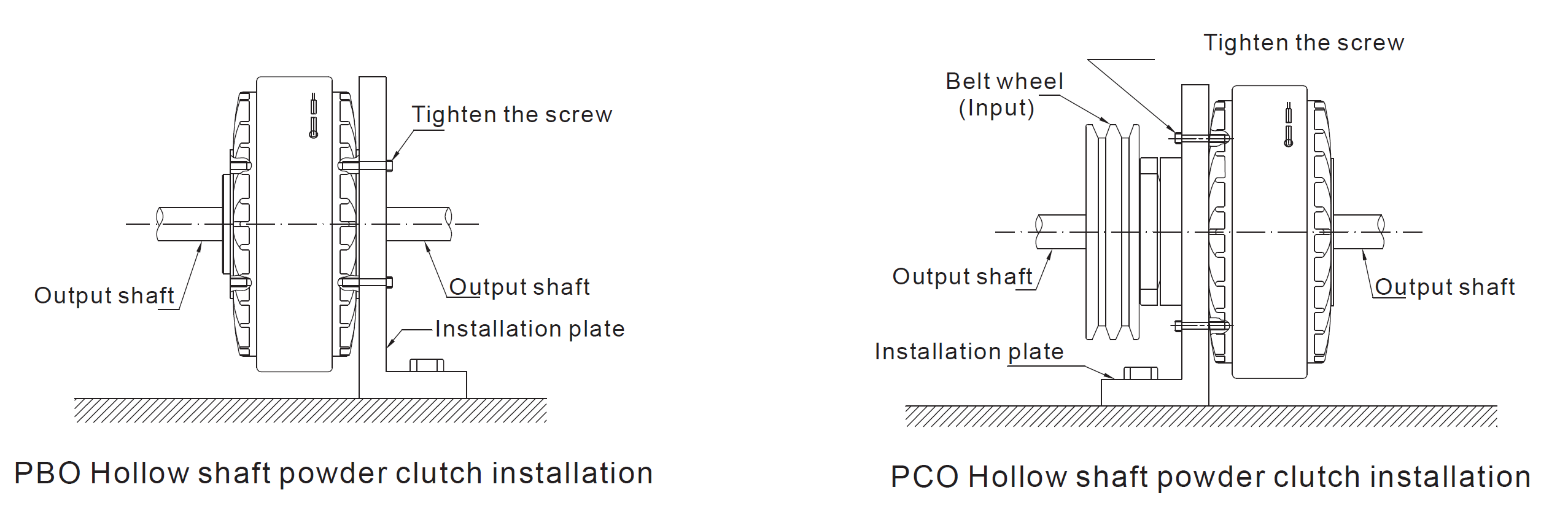

Magnetic Powder clutch Installation


Magnetic Powder Clutch Application

*Textile machinery: fiber twisters, treatment machines, weaving machines
* Metal fishing systems: extruders, wire stretchers, presses, welders, steel wire retractors, cutters, pipe makers, wire winding machines
*Machine tool systems: lathes,
* Millers, steel extruders, CNC lathes, specialized machinery
* Transportation equipment: hoists, feeders, conveyors, rollers, winders
* Paper- making systems: bag-making machines, box-making machines, slitters, book-making machinery, cutters, copy paper machines

Magneticparticle powder brake FAQ

1.    When can I get the quotation?

We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell us in your email, so that we can regard your inquiry priority.

2.    How should I place the order?

Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks. For air shaft and roller, please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3.    What’s your MOQ basis?

Normally, we don’t have MOQ request, except the rollers.

4.    What about the lead time for production?

Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller, load cell and edge position controller which is about 3-5 days. For safety chucks, air shaft and roller which need about 15-30days.

5.    What is the term of delivery?

We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.
